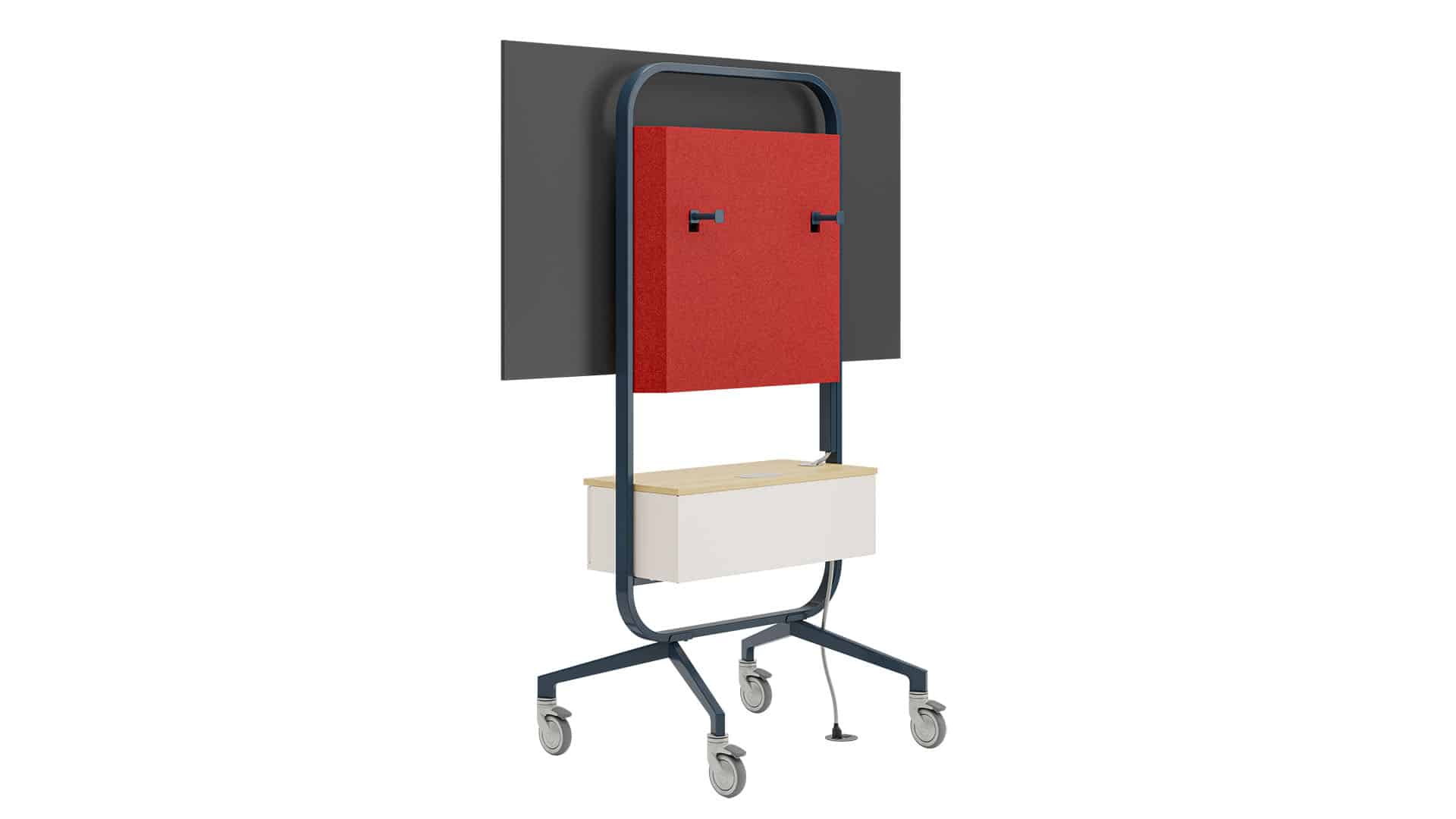

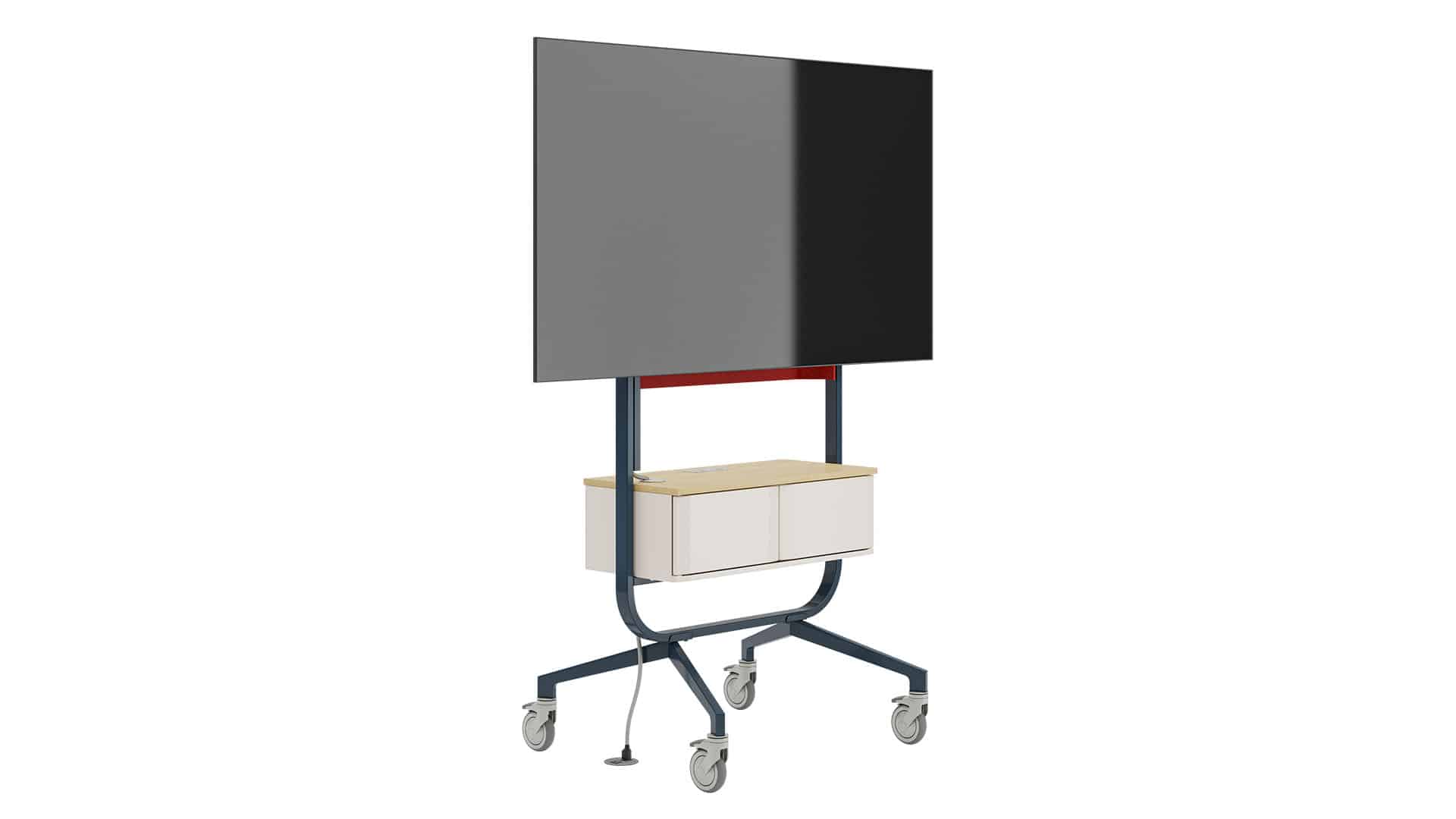

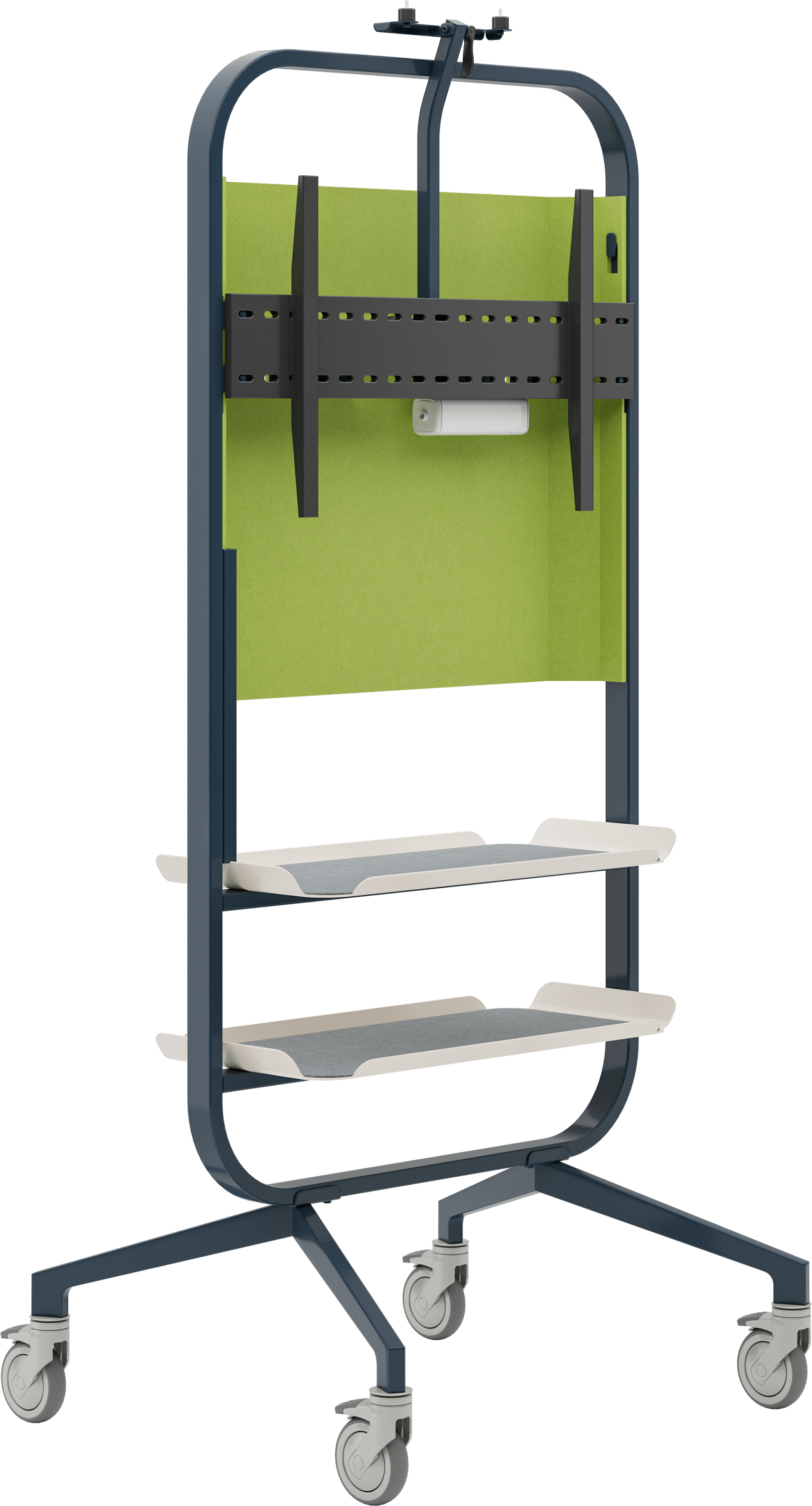

Venue Video Pier Support seamless video conferencing with the Venue Video Pier. Featuring a sleek adjustable camera mount and space for up to a 66” TV, it accommodates a Logitech Rally Bar above or below the display. Integrated power management and acoustic PET panels ensure a distraction-free environment by absorbing sound.

Mobile stand is designed for flat-panel displays from 48” to 66”

• The Venue allows one to bring their own technology application to the table. Customers are responsible for bringing and integrating technology and audio-visual components.
• Consult an AV or IT professional early in the design process for potential technology applications.
• No larger than 66" monitors should be used on the mobile media cart with a maximum 70 pounds weight capacity.


Features Include:

• Cart includes integrated Tuck power is standard with a 10' standard braided cord. Tuck Power includes 2 Outlets; USB-A; USB-C
• Cabinet Integrated Cove Power includes 2 Outlets; USB-A; USB-C
• Cabinet includes 3” grommet in black or silver
• Wire manager is included and powder coated to match the frame color.
• Removeable PET back cover

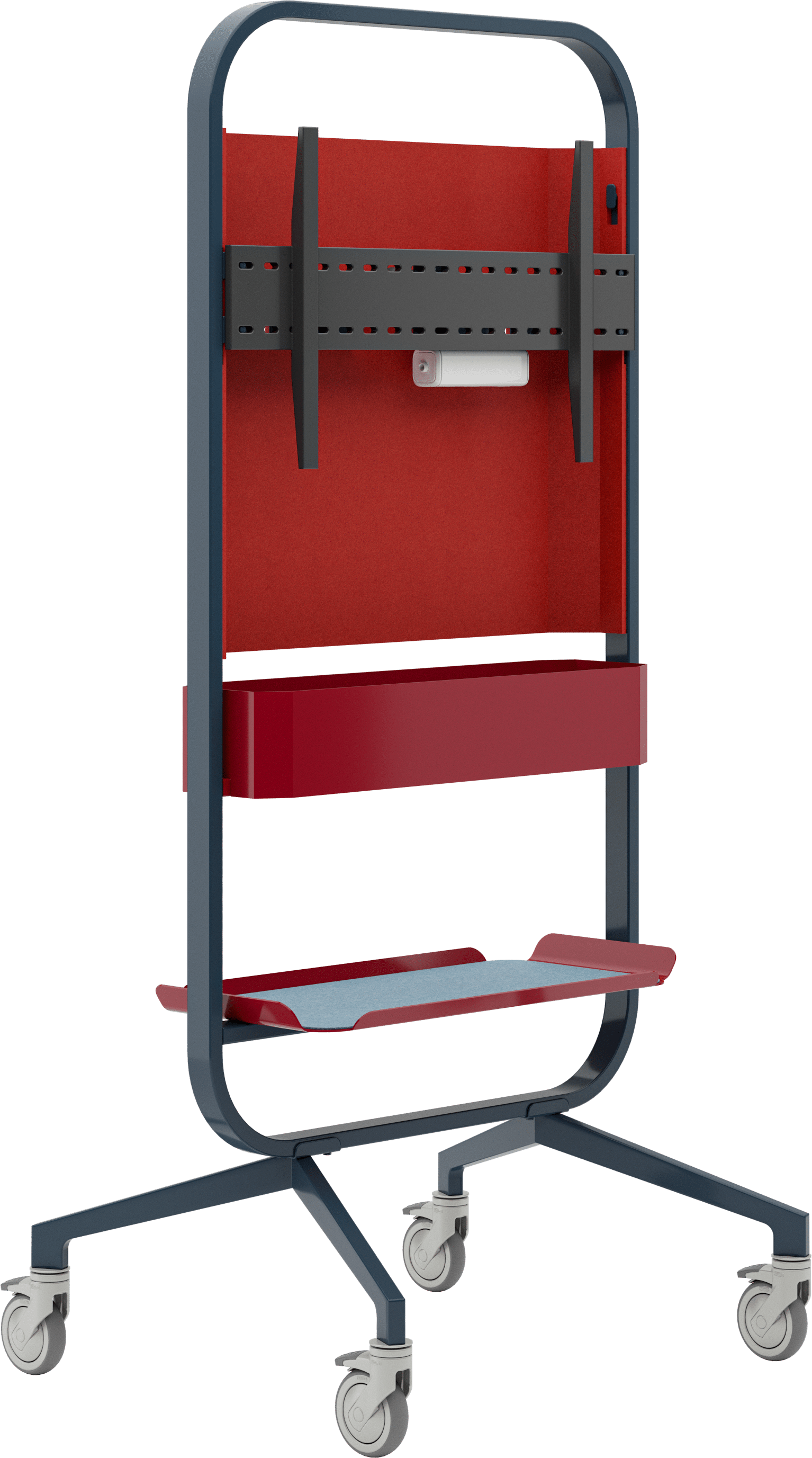

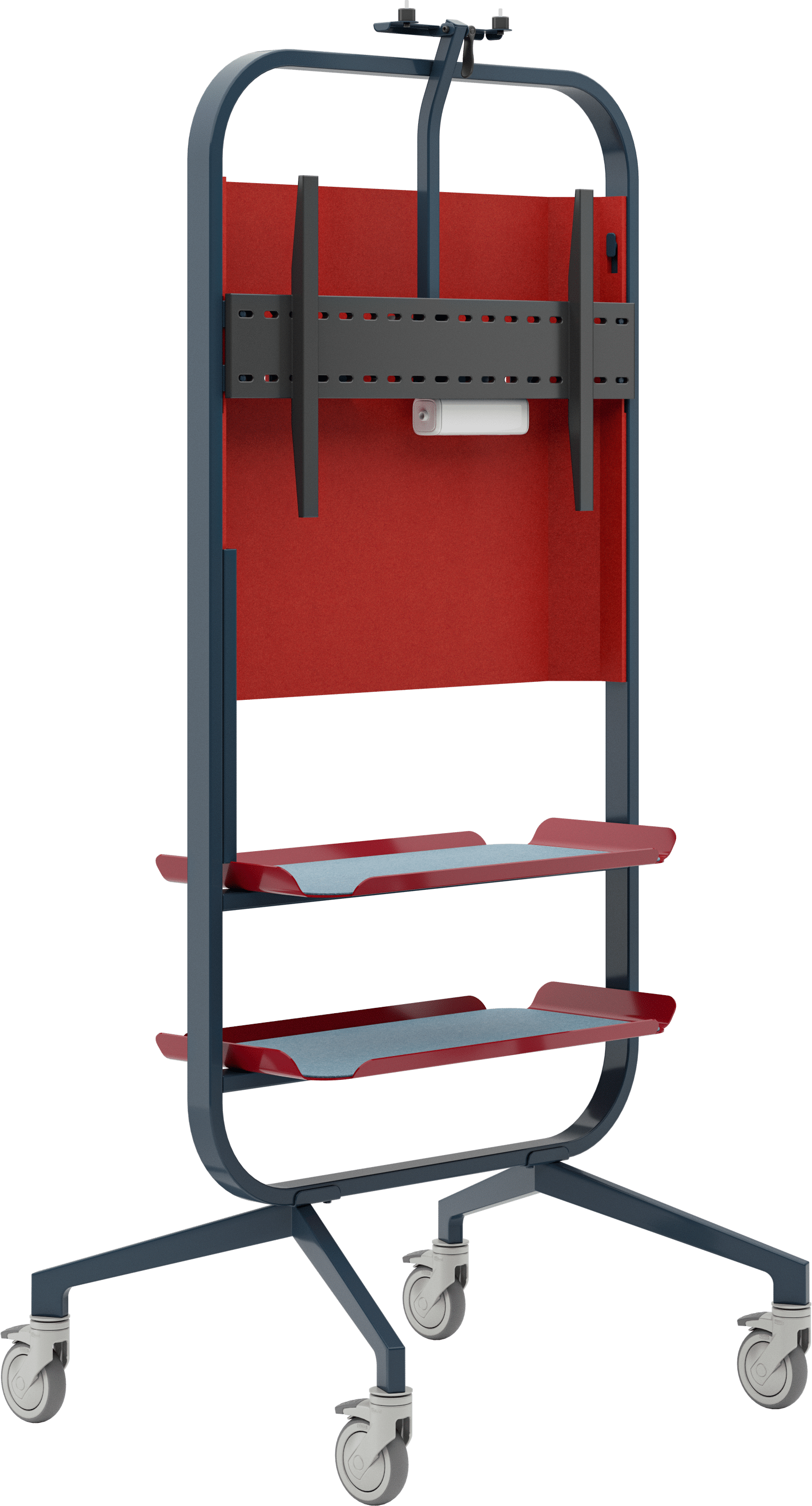

Shelves

• Fixed-height, non-adjustable shelves ensure sturdy support.
• Customize your look by selecting a contrasting color for the shelves and frame.
• Each shelf includes a magnetic Hush fabric liner for a sleek, sound-absorbing finish.


Pegs

• Designed with a built-in cord wrap, perfect for managing power cables.
• Built in tray provides a convenient place to put small CPU or other technology and storge power cords.

Casters

• Enjoy easy mobility with 360 degree locking casters.

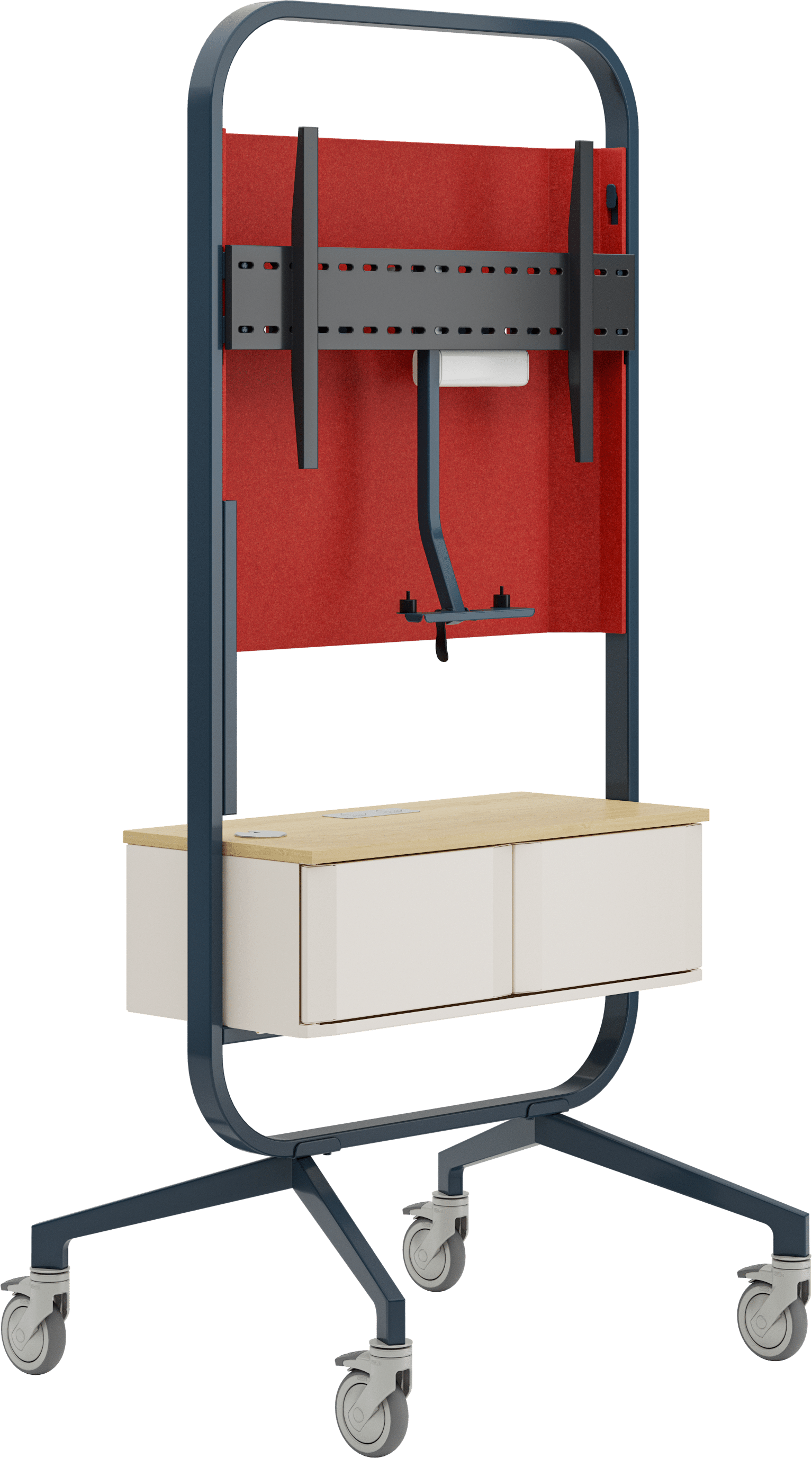

Cabinet

• The cabinet body is metal. The tabletop is ¾” thick laminate with PVC edges.
• Metal cabinet doors includes touch latches and open 90 degrees. Locks are not available.

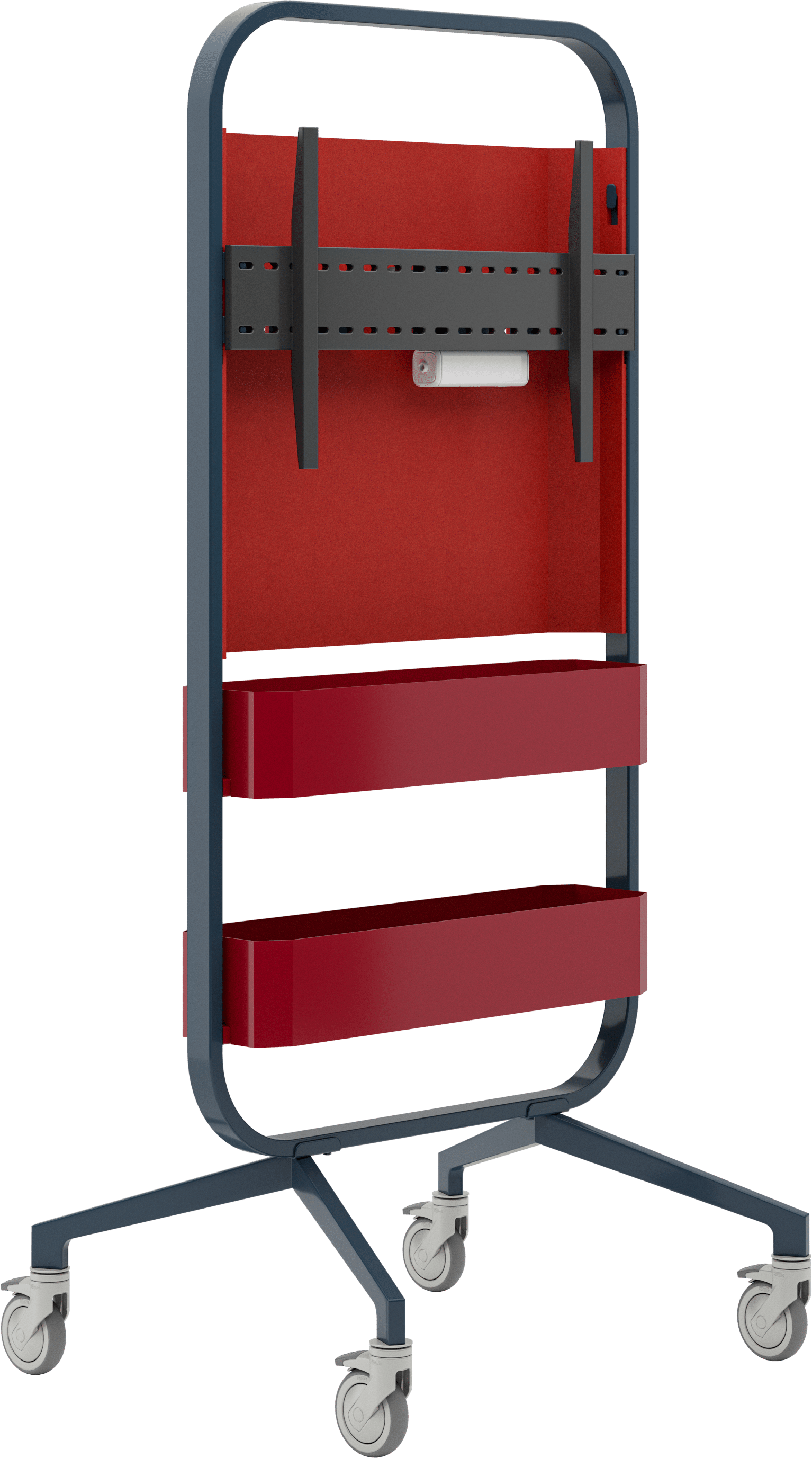

PET Bins

• Optional PET bins, ordered separately, sit on the cart shelves to provide storage.

TV Mount Specifications:

• Tripp Lite series Tilt TV Mount for 48" to 66" displays
• Tripp Lite Part Number:  DWT4585X
• Designed for flat-panel displays from 48” to 66”
• Supports up to 70 lbs. TV
• -10° to +10° tilt capability for comfortable viewing
• Improves viewing angles in applications where audience is below the display
• Adjustable mounting rails compensate for unlevel floors with built-in bubble level for accurate
• Mount weights 6.75 lbs.
• Scratch-resistant powder-coated finish

VESA Compliance - Supports the following VESA mounting hole patterns:

200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm

Mounting hardware included:

• (4) M5 x 14 screws
• (4) M6 x 14 screws
• (4) M6 x 30 screws
• (4) M8 x 20 screws
• (4) M8 x 30 screws
• (4) Washers
• (8) Small spacers
• (4) Big spacers
• (6) Anchor bolts
• (6) Concrete anchors
• (6) D6 washers

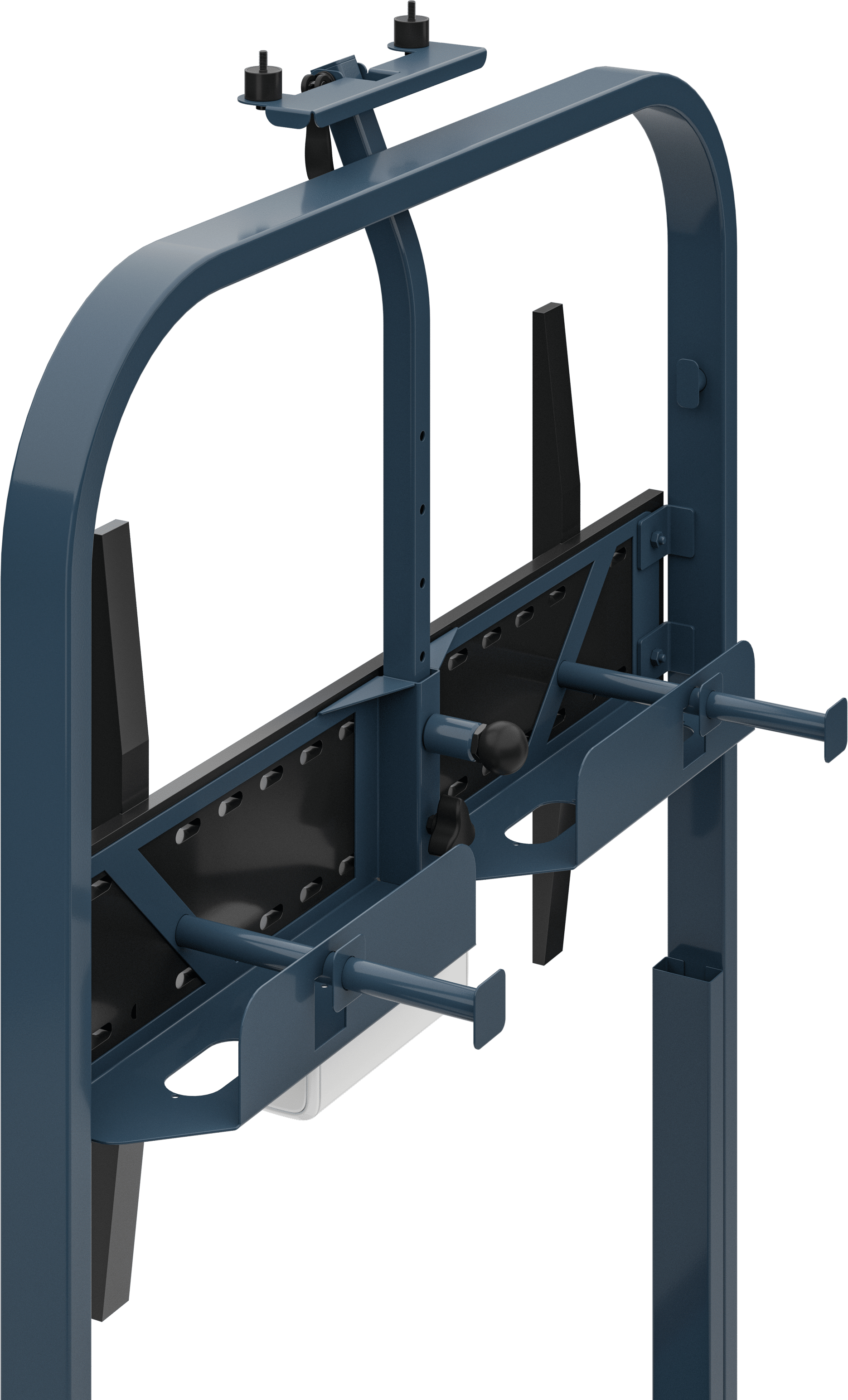

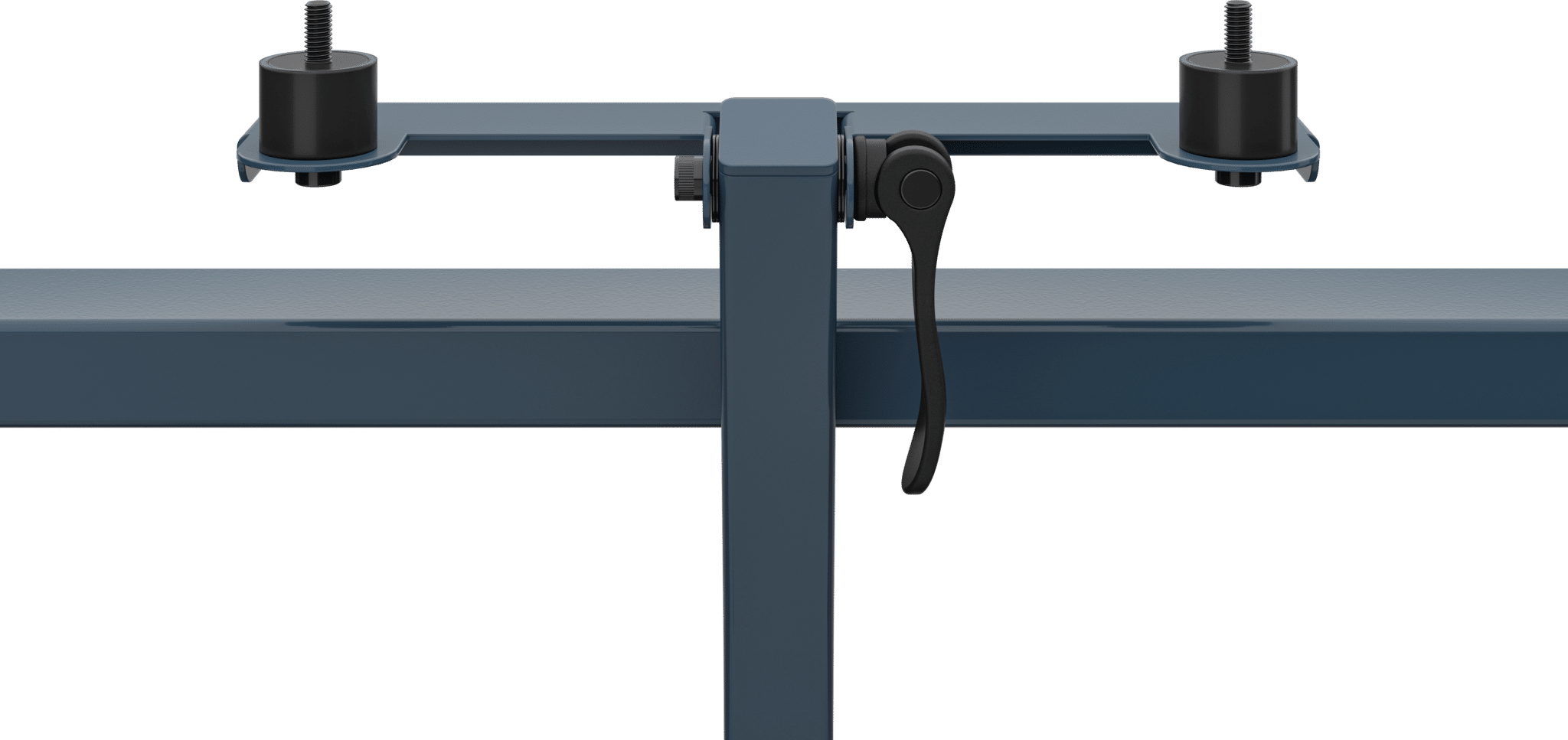

Camera Mount Features:

The Venue Cart includes a versatile, adjustable camera mount designed to accommodate a range of AV devices, including the Logitech Rally Bar, known for its larger size and weight. The mount can be easily adjusted to suit different meeting formats — position it above the TV for standing presentations or below the TV for seated discussions to ensure ideal camera angles and clear visibility.

For added stability, the mount is equipped with a durable tightening lever that securely locks your AV equipment in place, minimizing movement and vibrations during use. This thoughtful design ensures a professional and uninterrupted video conferencing experience.
